Hardware Specifications

Vendor/Brand	Nokia
Model	G-010S-P
ODM	SourcePhotonics
ODM Product Code	SPS-34-24T-HP-TDFO
Chipset	Lantiq PEB98035
Flash	16 MB
RAM	64 MB
CPU	MIPS 34Kc interAptiv
CPU Clock	400MHz
System	OpenWRT
SFP interfaces	HSGMII
Optics	SC/APC
IP address	192.168.1.10
Web Gui	Can be enabled
SSH	✅ user ONTUSER, password SUGAR2A041
Telnet
Serial	✅ on SFP
Serial baud	115200
Serial encoding	8-N-1
Form Factor	miniONT SFP

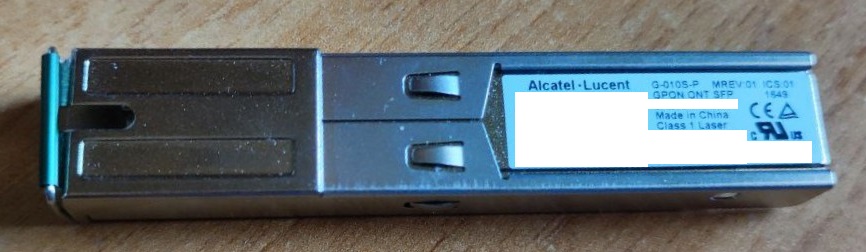

G-010S-P

G-010S-P and MA5671A Teardown

::: warning Warning G-010S-P and other models will not expose an ethernet interface unless the fiber cable is connected ([source](https://forum.mikrotik.com/viewtopic.php?t=116364&start=300)) :::

Firmware is interchangeable with:

• Huawei MA5671A
• FS.com GPON ONU Stick with MAC / SourcePhotonics SPS-34-24T-HP-TDFO
• Hilink HL23446
• Dasan H650SFP
• DpOptics D23446
• Photonics SPS-34-24T-HP-TDFO {.text-red-200} The Nokia G-010S-A can be flashed with the Nokia G-010S-P firmware, provided the MTD layout has been changed beforehand to match the new one. For the full procedure, see the post on lafibre.info

List of software versions

• 3FE56853AOPD39

Serial

The stick has a TTL 3.3v UART console (configured as 115200 8-N-1) that can be accessed from the SFP connector.

USB TTL(UART) Adapter	SFP 20pins Molex connector
3.3V	pin #15 and #16
TX	pin #2
RX	pin #7
GND	pin #14 and #10

Note

Try PIN 10 or other GND PINs if the connection doesn't work by using PIN 14.

Note

Some USB TTL adapters label TX and RX pins the other way around: try to swap them if the connection doesn't work.

List of partitions

Partition layouts change depending on which image is booted, in particular:

When booting image0:

mtd2 ---> image0 (linux)
mtd5 --> image1
mtd3 --> rootfs
mtd4 --> rootfs_data

When booting image1:

mtd2 ---> image0
mtd3 --> image1 (linux)
mtd4 --> rootfs
mtd5 --> rootfs_data

For more info XPONos partition layout.

When booting from image0

dev	size	erasesize	name
mtd0	00040000	00010000	"uboot"
mtd1	00080000	00010000	"uboot_env"
mtd2	00740000	00010000	"linux"
mtd3	0061eedc	00010000	"rootfs"
mtd4	00370000	00010000	"rootfs_data"
mtd5	00800000	00010000	"image1"

When booting from image1

dev	size	erasesize	name
mtd0	00040000	00010000	"uboot"
mtd1	00080000	00010000	"uboot_env"
mtd2	00740000	00010000	"image0"
mtd3	00800000	00010000	"linux"
mtd4	006d8077	00010000	"rootfs"
mtd5	00410000	00010000	"rootfs_data"

General Settings and Useful Commands

Bootloader unlock from shell

Warning

It is strongly recommended that you unlock the bootloader before making any major changes to the firmware.

fw_setenv bootdelay 5
fw_setenv asc0 0
fw_setenv preboot "gpio set 3;gpio input 2;gpio input 105;gpio input 106;gpio input 107;gpio input 108"

Info

In general, the last command is not needed because by default serial is already enabled on SFP PINs.

Getting and Setting S/N

To check the current serial number:

onu gtcsng

To set the current serial number:

onu gtcsns ABCD12345678

Getting and Setting PLOAM Password

To check the current password (the password field contains decimal values of ASCII characters):

onu gtccg

To set the current password:

uci set gpon.ploam.nPassword="0x30 0x31 0x32 0x33 0x34 0x35 0x36 0x37 0x38 0x39"
uci commit

Info

There is also the onu gtc_password_set command to set the ploam password but it does not seem to work.

Getting/Setting Speed LAN Mode

The known speed values are as follows:

Value	Speed
4	1 Gbps
5	2.5 Gbps

To set the (H)SGMII Mode:

fw_setenv sgmii_mode 5

To remove the value (back to default):

fw_setenv sgmii_mode

To get the (H)SGMII Mode:

onu lanpsg 0

The link_status value shows the speed.

Disabling Dying Gasp

fw_setenv nDyingGaspEnable 0

Rebooting the ONU

reboot

Checking whether the connection with the OLT was successful (O5 state)

onu ploamsg

Enabling the Web UI

To activate the web-ui you can use this guide from dslreport forum archived on archive.org.

Transferring files to the stick

Info

If you use a modern OpenSSH version (e.g. >= 8.8) you will have to use the legacy protocol and enable some deprecated algorithms: scp -oKexAlgorithms=+diffie-hellman-group1-sha1 -oHostKeyAlgorithms=+ssh-dss [...]

# scp rootfs.bin root@192.168.1.10:/tmp/

Backup of all partition

Make a backup of all partitions, an easy way is:

• On the stick run:

cat /proc/mtd

• For each mtdX run in the lantiq shell:

cp /dev/mtdX /tmp

Info

If you use a modern OpenSSH version (e.g. >= 8.8) you will have to use the legacy protocol and enable some deprecated algorithms: scp -oKexAlgorithms=+diffie-hellman-group1-sha1 -oHostKeyAlgorithms=+ssh-dss [...]

And in the computer shell:

scp ONTUSER@192.168.1.10:/tmp/mtdX ./

Checking the currently active image

# fw_printenv committed_image

Booting to a different image

# fw_setenv committed_image 0|1
# fw_setenv image0|1_is_valid 1

Cloning of mtd1 (image 0) into mtd5 (image 1)

Warning

Image 0 can be flashed to image 1, while image 1 cannot be flashed to image 0 because it has larger rootfs_data

The following commands are used to clone image0 to image1 and then boot to it

# cat /dev/mtd2 > /tmp/mtd2.bin
# mtd -e image1 write /tmp/mtd2.bin image1
# fw_setenv committed_image 1
# fw_setenv image1_is_valid 1
# reboot

Flashing a new rootfs via SSH

Info

Only the inactive image can be flashed

The following commands are used to flash a new rootfs to image1 and then boot to it

# mtd -e image1 write /tmp/rootfs.bin image1
# fw_setenv committed_image 1
# fw_setenv image1_is_valid 1
# reboot

Warning

Some OLTs don't like when ONTs don't boot from image 0, therefore the previous procedure must be preceded by the following procedure with inverted images, as to clone image 1 into image 0

TX Fault / Serial

The stick stays in a perpetual "TX Fault" state since the same SFP pin is used for both serial and TX Fault signaling, if that causes you issues (normally it shouldn't) you can issue the commands below to disable it. Note that it will disable both the TX Fault signal and Serial on the stick after boot.

fw_setenv asc0 1
fw_setenv preboot "gpio set 3;gpio input 100;gpio input 105;gpio input 106;gpio input 107;gpio input 108"

In case you need to re-enable it issue the following commands from the bootloader (FALCON)

FALCON => setenv asc0 0
FALCON => saveenv
